TVIB — Sound & Vibration Analysis Software

TVIB is modular. You buy the base, and you add only the modules your work needs — order tracking when you’re tearing into rotating-equipment diagnostics, FRF when you’re doing modal, sound-level when you’re chasing acoustic limits. The base module (TSAP201) ships free with every PhonoVibe DAQ.

The module map

Code	Module	What it does
TSAP201	Time & FFT Spectrum Analyzer	The base. Time wave + narrowband FFT, filters, cursors, post-processing. Free with PhonoVibe.
TVM 202 / 203	Basic Vibration Meter	RMS, peak, peak-to-peak, crest factor with unit scaling and dB views.
TSLM 204	Sound Level Meter	A / C / Z-weighted SPL, Leq, Lmax — for environmental and product-acoustic work.
TIST 205	Signal Generator / Impact Shaker	Drive a shaker for impact, sine, chirp, random tests. Built-in calibrator.
TFRT	FRF Test	Frequency-response measurement — drive point, transfer path, modal pre-processing.
TOA 207 / 208	Octave Analyzer	1/1, 1/3, 1/6, 1/12 octave bands. Useful for acoustic NDT and machinery octave alarms.

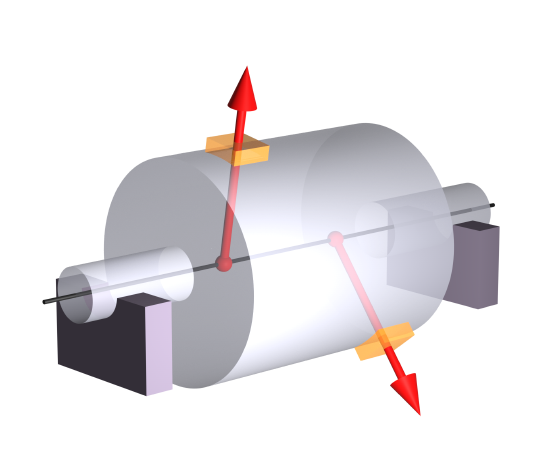

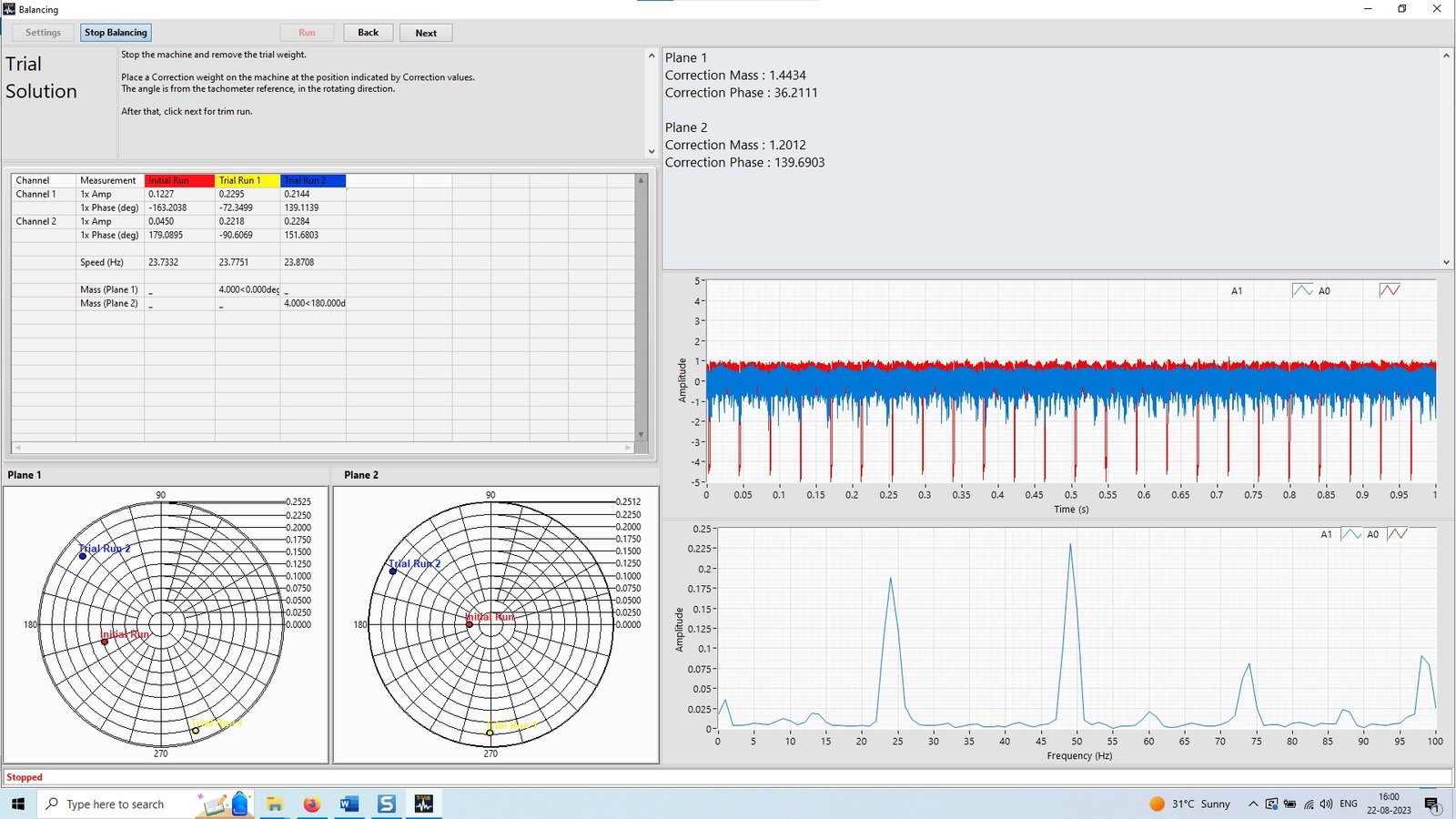

TB 210	Balancing	Single-plane and two-plane field balancing with phase correction.
MODALVIEW	ODS & EMA	Operating Deflection Shapes and Experimental Modal Analysis (add-on package).

TSAP201 in more detail

TSAP201 is what most users start and stay with. Specs:

• 2-channel operation with sample rate, sample count, and bit-depth selection
• Time wave and narrowband FFT up to 102,400 points
• Independent channel calibration and scaling (separate views per channel)
• Scaling presets: accelerometers, microphones, force sensors, voltage
• FIR and IIR filters
• Channel triggers (pre / post, hysteresis)
• Averaging: exponential, linear, peak hold, with selectable windowing
• Harmonic, band, and sideband cursors in both time and frequency domain
• Acceleration → velocity → displacement integration
• Linear, log, and dB scaling with axis annotation
• Signal recording and post-processing

Datasheet (PDF) · 8-video product playlist on the live TVIB site.

Third-party DAQ compatibility

TVIB is not locked to TIERA hardware. Tested and supported with:

• National Instruments 9234, 4431, 9231
• Modal Shop 485B39
• Sinus Apollo Light
• Data Translation DT9837
• And, of course, every PhonoVibe in the series

Contact sales@tieraonline.in for compatibility on other DAQ models.

Licensing

Two options:

• Web-based key — software-bound, requires online activation. Easiest path.
• Dongle (USB) — PC-independent, physical key. Useful for offline labs or shared workstations. Note: lost dongles typically require repurchase since the software is already heavily discounted.

Module upgrades: AMC customers pay only for the new modules. Non-AMC customers pay for all modules plus the dongle cost — treated as a fresh purchase. Email licensing@tieraonline.in for activation, upgrades, or transfers.

Try before you buy

A 14-day fully-unlocked evaluation licence is available. Note that the trial is for sound-card-based devices and is not calibrated — it lets you explore the UI and module workflow, not run audited measurements.

Start the 14-day trial →

Recommended PC specs

• Intel Core i7, 4 cores (3rd generation or newer)
• 8 GB RAM, SSD
• DirectX 11 graphics
• 1280×720 (HD-ready) display
• Windows 10 64-bit or Windows 11
