PhonoVibe Series

The PhonoVibe series is TIERA’s flagship USB DAQ line for sound and vibration measurement. Five models — D, Q, O, HD, and Eco X — covering field service kits up to 16-channel modal labs.

Model lineup

Model	Channels	Sampling	Bandwidth	Input	Price
PhonoVibe D	2 (BNC)	48 kHz	2 Hz – 20 kHz	±10 V	Rs 1,36,080
PhonoVibe Q	4 (BNC)	128 kHz	0.5 Hz – 60 kHz	±5 V	Rs 2,88,000
PhonoVibe O	8 (BNC)	128 kHz	0.5 Hz – 60 kHz	±5 V	Rs 4,60,800
PhonoVibe HD	16 (BNC)	128 kHz	0.5 Hz – 60 kHz	±5 V	Rs 7,20,000
PhonoVibe Eco X	4 + 20 N shaker	48 kHz	2 Hz – 20 kHz	±10 V	$1,500 / $6,750 (kitted)

Every model: 24-bit ADC · simultaneous sampling · IEPE / ICP / CCLD sensor power (24 V / 4 mA) · TEDS support · static (DC) measurements · USB-powered, plug-and-play on Windows 10 and 11.

Datasheets on Drive — PhonoVibe D, Q, O, HD, Eco X.

PhonoVibe Eco X — the bundled bench

The Eco X is a complete sound-and-vibration bench in a single box: 4-channel DAQ, 20 N electrodynamic shaker, 150 W amplifier, PC-based signal generator (sine, chirp, burst, random), and a sensor starter pack (100 mV/g accelerometer + 25 mV/N impact hammer). Optional ModalVIEW software for ODS and EMA.

Useful for universities running modal-analysis courses, TCAT training centres, and reliability teams needing a portable demo and training rig. Starts from $1,500 for the DAQ + shaker unit, or $6,750 for the full kitted bundle including TVIB and sensors.

What ships in the box

Every PhonoVibe DAQ ships with:

• TVIB TSAP 201 software (perpetual licence — ~Rs 37,000 standalone value)
• Connectors and cables for sensor wiring
• USB cable, quick-start guide
• Factory calibration certificate (1-year validity)
• 2-year standard warranty (extendable to 3 with AMC)

Choosing a model

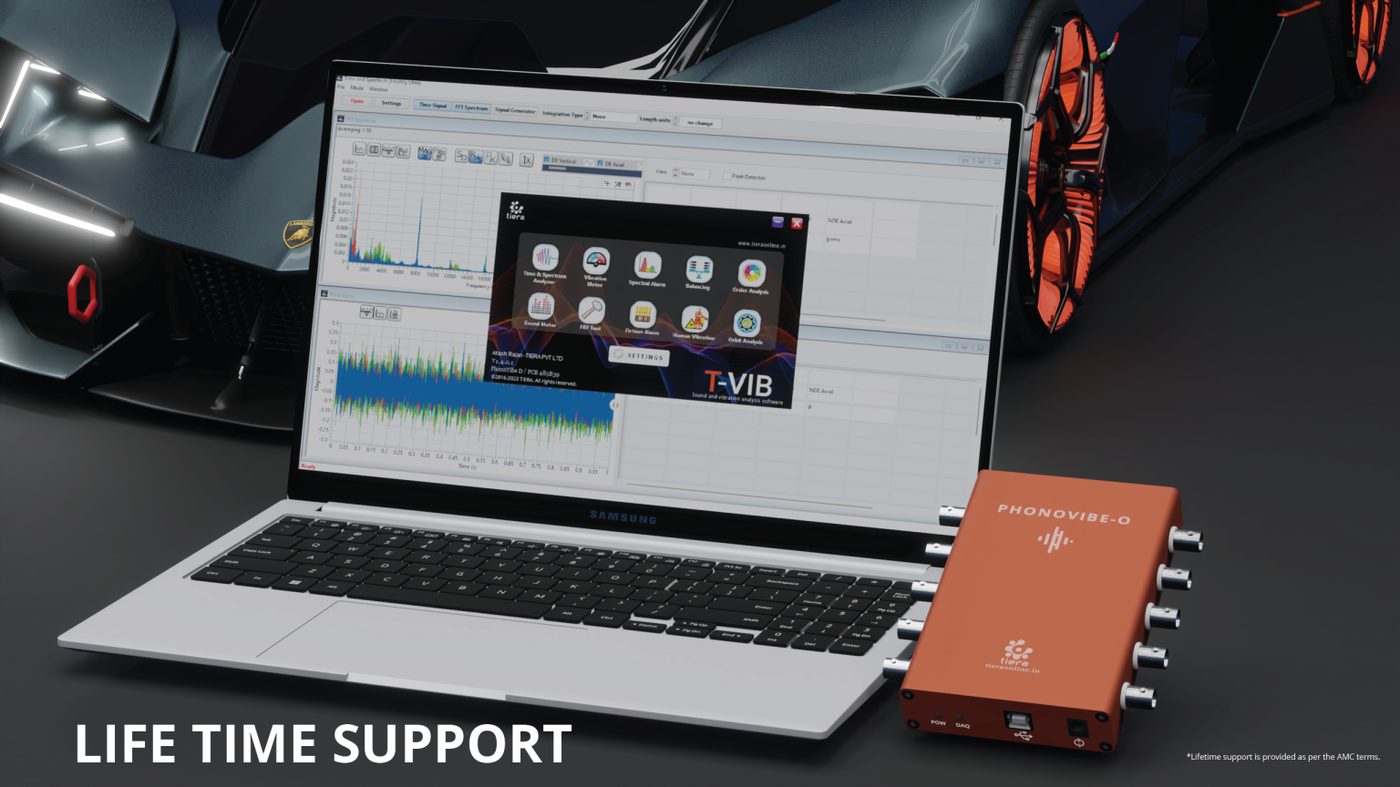

• PhonoVibe D — single-machine condition monitoring, classroom teaching, field service kit.
• PhonoVibe Q — small reliability team, multi-bearing or shaft-end measurement, mid-range modal work.
• PhonoVibe O / HD — full modal testing, line-monitoring banks, multi-axis transducer arrays, R&D labs.
• PhonoVibe Eco X — universities, training centres, and engineering colleges that need an integrated bench.

What pairs naturally

• TVIB TSAP 201 (bundled free) for time waveform, spectrum, FRF, octave, balancing
• TMFSS as a controlled-fault source for training and algorithm validation
• TIERA accelerometers (TACPB-10T3 MEMS) and cables — see Sensors — or bring your own IEPE sensors

Cross-compatibility

PhonoVibe DAQs work seamlessly with TVIB. TVIB also supports National Instruments 9234 / 4431, Modal Shop 485B39, Sinus Apollo Light, and DT9837 — useful if you’re integrating PhonoVibe into a mixed-DAQ lab.

Pricing excludes GST. Academic discount of 10–15% is available on hardware — confirm with sales for your project.
