Sound & vibration instruments, made in India.
TIERA designs and manufactures PhonoVibe DAQ systems, TMFSS fault simulators, TVIB analysis software, and ISO 18436-2 aligned training — used by VSSC/ISRO, DRDO, NIT Trichy, and labs across India and abroad.
Designed, built, calibrated — in Thiruvananthapuram.
Three product families. One signal chain.
Capture, simulate, analyse — with instruments designed and manufactured in India.
PhonoVibe DAQ
2-, 4-, 8-, 16-channel USB DAQ. 24-bit ADC, IEPE/ICP/CCLD sensor power, TEDS support. Bundled with TVIB software.
TMFSS Fault Simulators
Reproduce 30+ machinery faults — misalignment, bearing defects, looseness, gearbox, pump cavitation — under VFD speed control.
TVIB Software
Time waveform, spectrum, FRF, octave, order tracking, modal, balancing. Free with every PhonoVibe. ~Rs 37,000 standalone value.
Four product families, one signal chain.

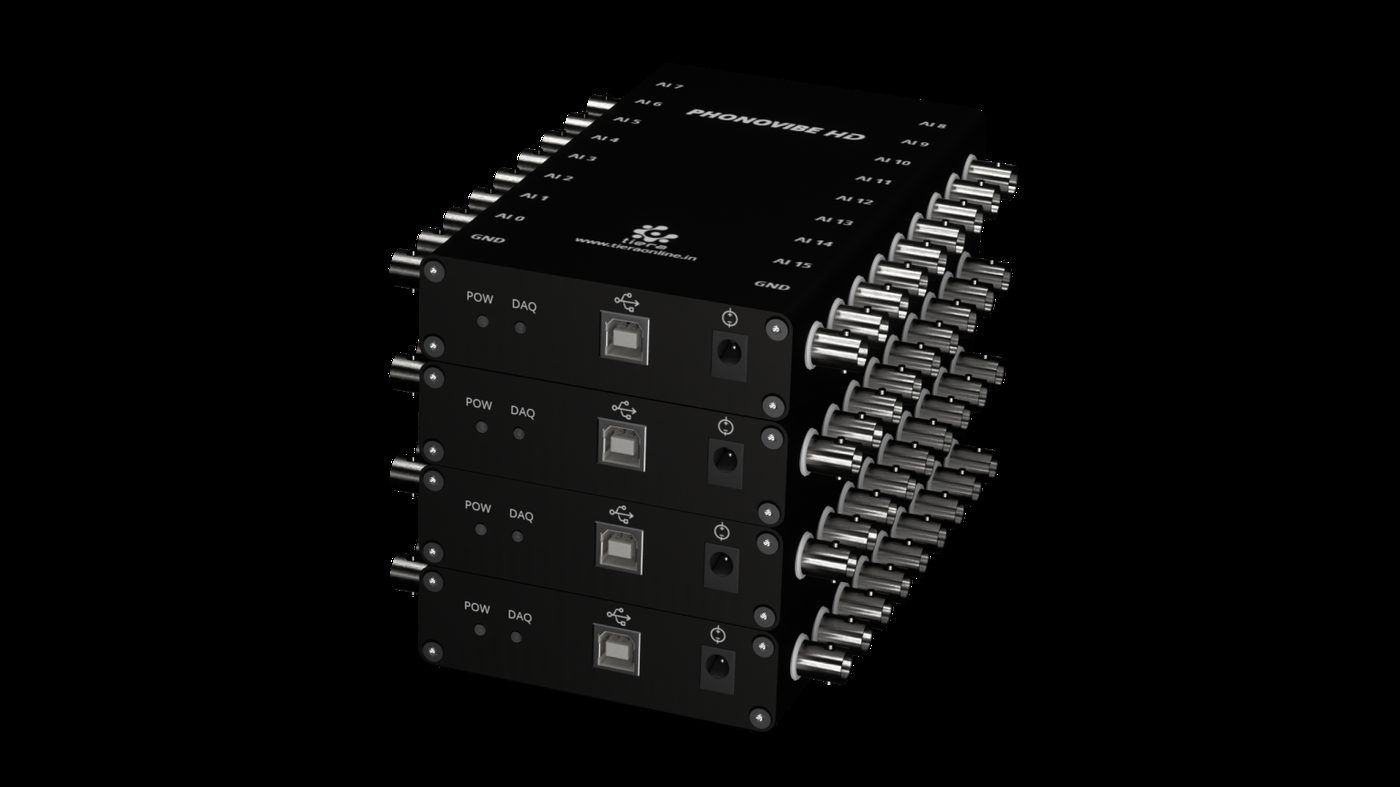

24-bit USB data acquisition for sound and vibration. Plug-and-play. Made in India.
Five models — 2, 4, 8, 16-channel, plus the Eco X bundle with built-in shaker. All 24-bit, all USB plug-and-play, all bundled with TVIB software. Compatible with IEPE/ICP/CCLD sensors and TEDS.

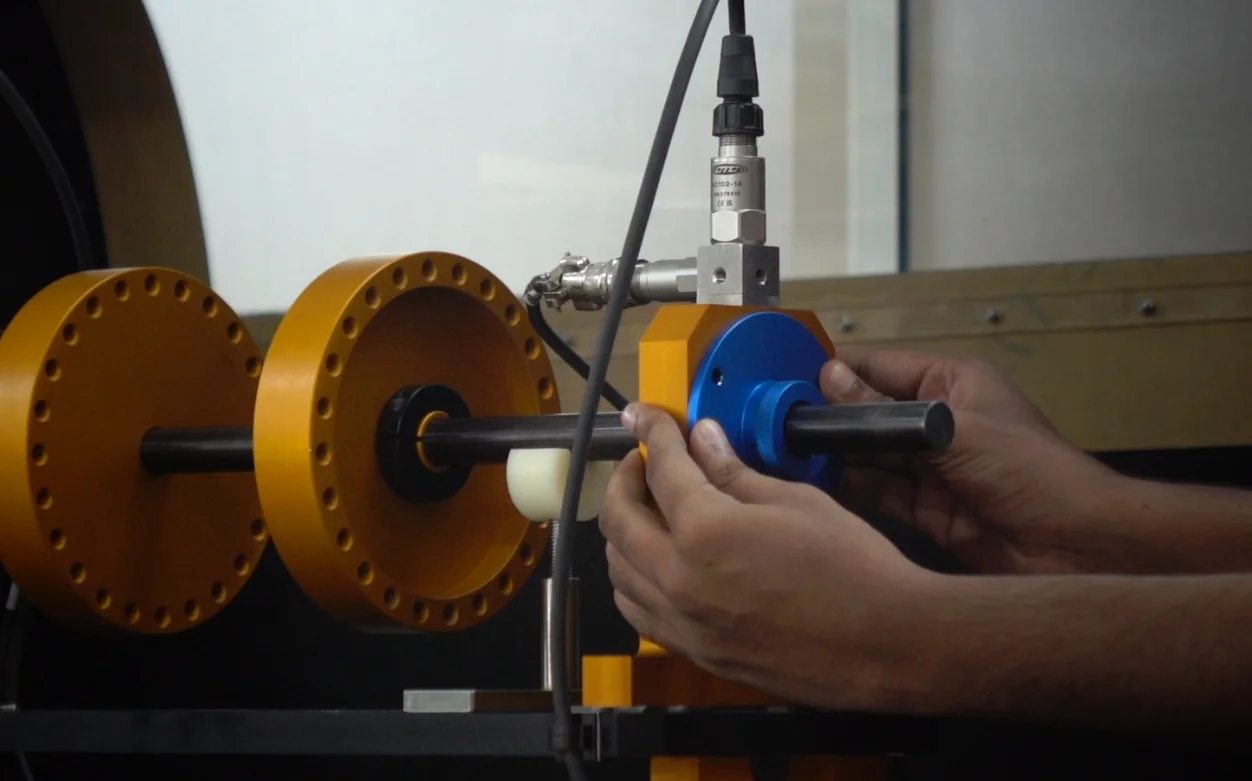

Experience · Train · Innovate — 30+ machinery faults reproduced on a benchtop simulator.

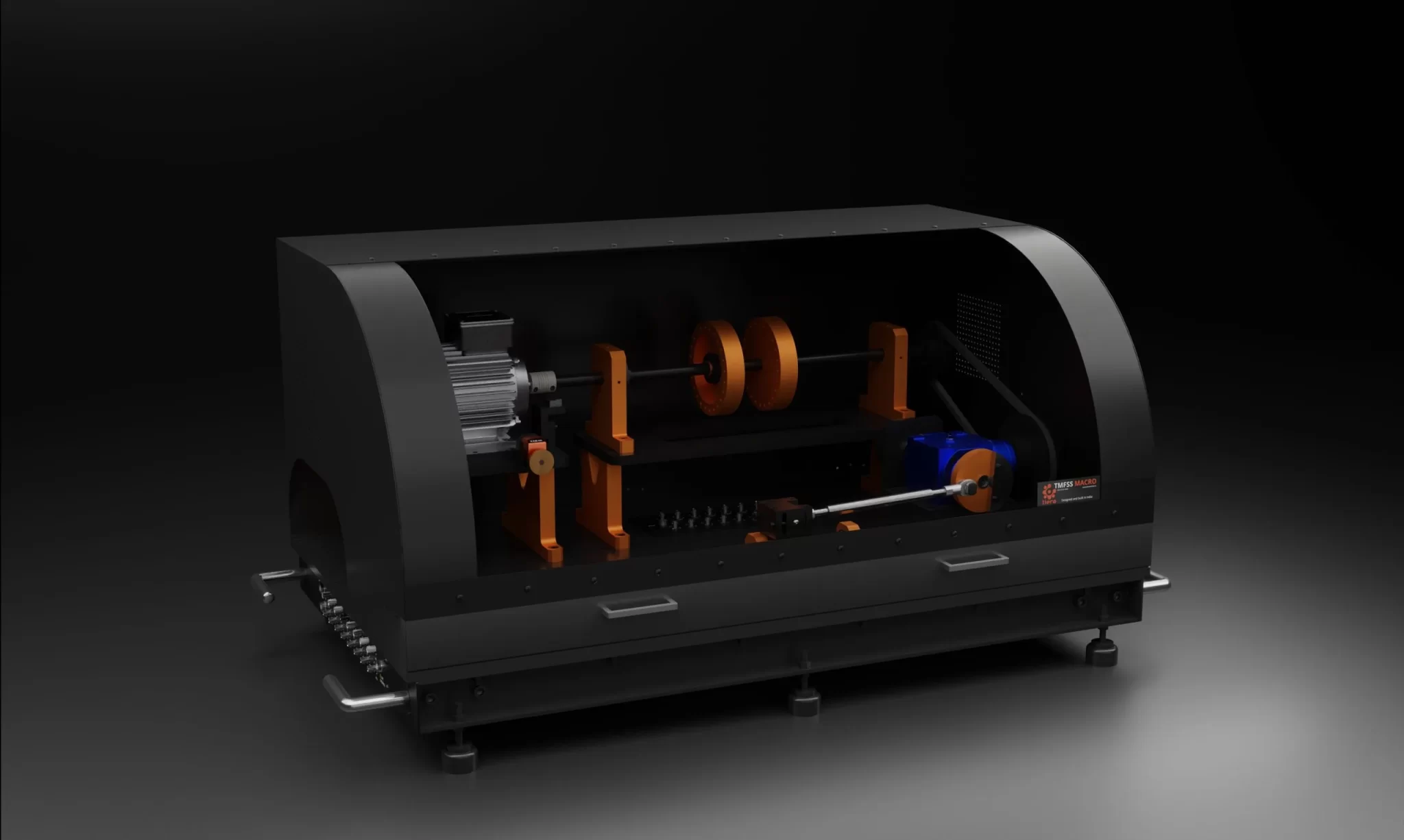

Portable simulator for repeatable rotating-machinery faults. Three sizes — Macro for research and full-industry training, Mini for academic and entry-level, Micro for classroom. Add-on kits expand the fault library. Make in India.
The modular analysis toolbox that runs every TIERA DAQ — and many third-party ones.

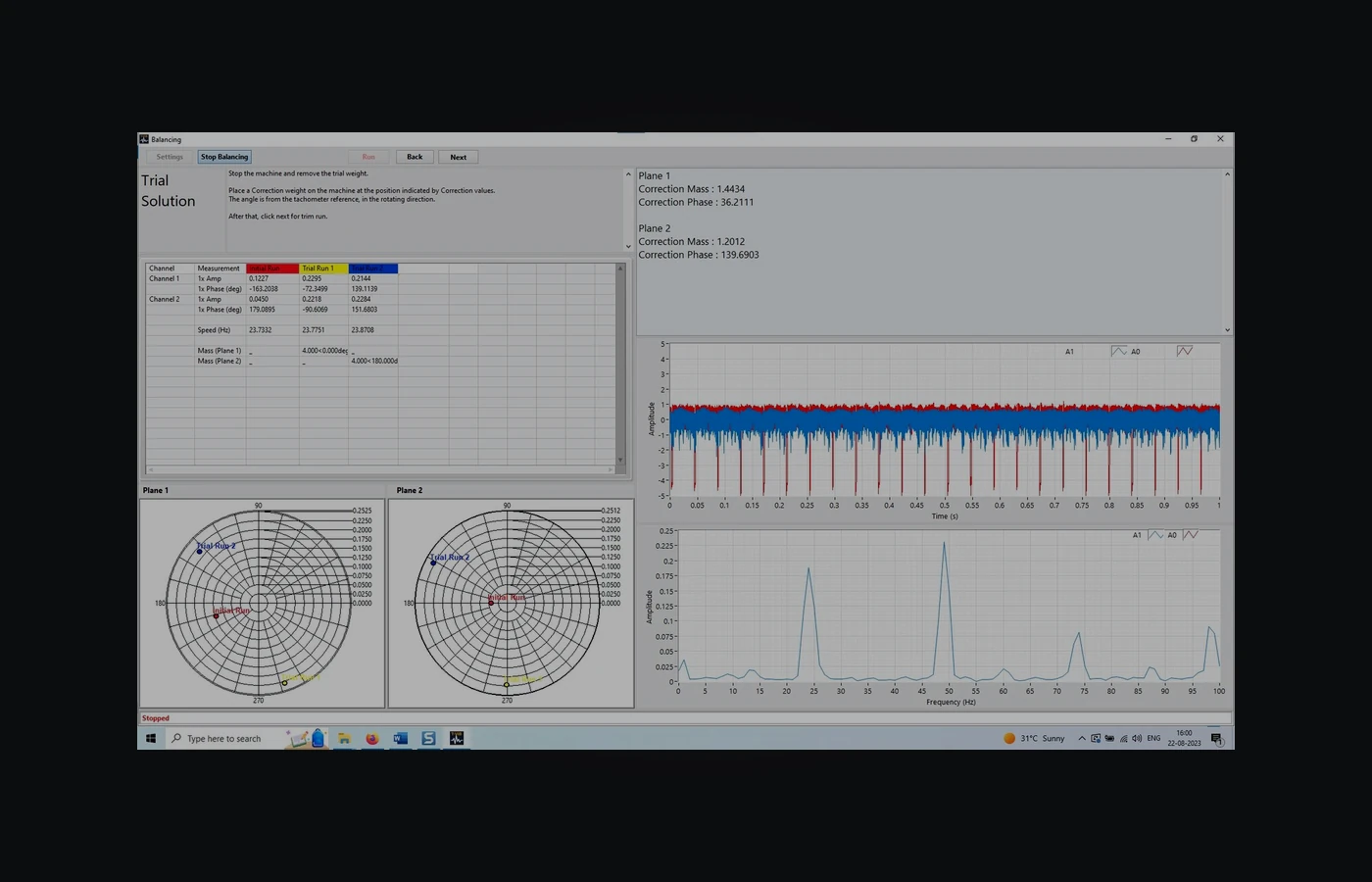

TSAP201 base module free with every PhonoVibe. Add modules — vibration meter, sound level meter, FRF, balancing, order tracking — only when you need them.
Hands-on benches for vibration analyst certification courses.
Compact, classroom-friendly hardware bundles that pair with TCAT Cat I / Cat II syllabi — bearing-fault rigs, balancing benches, and structural-modal demonstrators. Designed to fit a 6-ft table.
Capture. Analyse. Decide.
- 01
Capture
PhonoVibe DAQ samples up to 128 kHz at 24-bit through IEPE sensors with TEDS — plug-and-play over USB on Windows 10/11.
- 02
Analyse
TVIB TSAP 201 runs spectrum, FRF, octave measurements, order tracking and modal — the standard diagnostic toolbox vibration analysts already use.
- 03
Decide
Export trends, share reports, and act before failure. Optional TCAT training — aligned with ISO 18436-2 — turns your team into qualified analysts.
PhonoVibe D — 2-channel DAQ
The entry into 24-bit sound & vibration data acquisition.
Ships with TVIB TSAP 201, connectors and cables, factory calibration certificate.
- Channels
- 2
- Sampling rate
- 48 kHz
- Bandwidth
- 2 Hz – 20 kHz
- ADC
- 24-bit
- Sensor power
- 24 V / 4 mA IEPE / ICP / CCLD
- Connectivity
- USB, plug and play
- Warranty
- 2 years (extendable to 3)
Engineered in India. Priced for Indian industry.
Make in India
Designed, manufactured, and calibrated at our Thiruvananthapuram facility. Not a reseller of imported gear.
Affordable by design
Price advantage versus imported brands is a deliberate engineering and supply-chain choice — not a quality compromise.
Bundled value
Every PhonoVibe ships with TVIB software (~Rs 37,000 value), connectors and cables, and a 2-year warranty.
Training-aligned
TCAT courses are aligned with ISO 18436-2 Cat I and Cat II syllabus — same standard your reliability team is already certified to.
Things customers ask, with straight answers.
Don't see your question? Email sales@tieraonline.in.
Is TIERA ISO 9001 certified? +
No. We don't currently hold ISO 9001 and we don't claim it. Our TCAT training courses are aligned with the ISO 18436-2 vibration analyst syllabus — that's a different standard, about analyst certification, not company certification.
Will TVIB software work with my non-TIERA DAQ? +
TVIB TSAP 201 is officially supported on PhonoVibe DAQ systems (D, Q, O, HD, Eco X). For third-party DAQs, talk to support@tieraonline.in about compatibility — case by case.
What's included with a PhonoVibe DAQ? +
Every PhonoVibe ships with TVIB TSAP 201 software (~Rs 37,000 standalone value), connectors and cables, a factory calibration certificate valid for one year, and a 2-year warranty extendable to 3.
How many faults can TMFSS Macro simulate? +

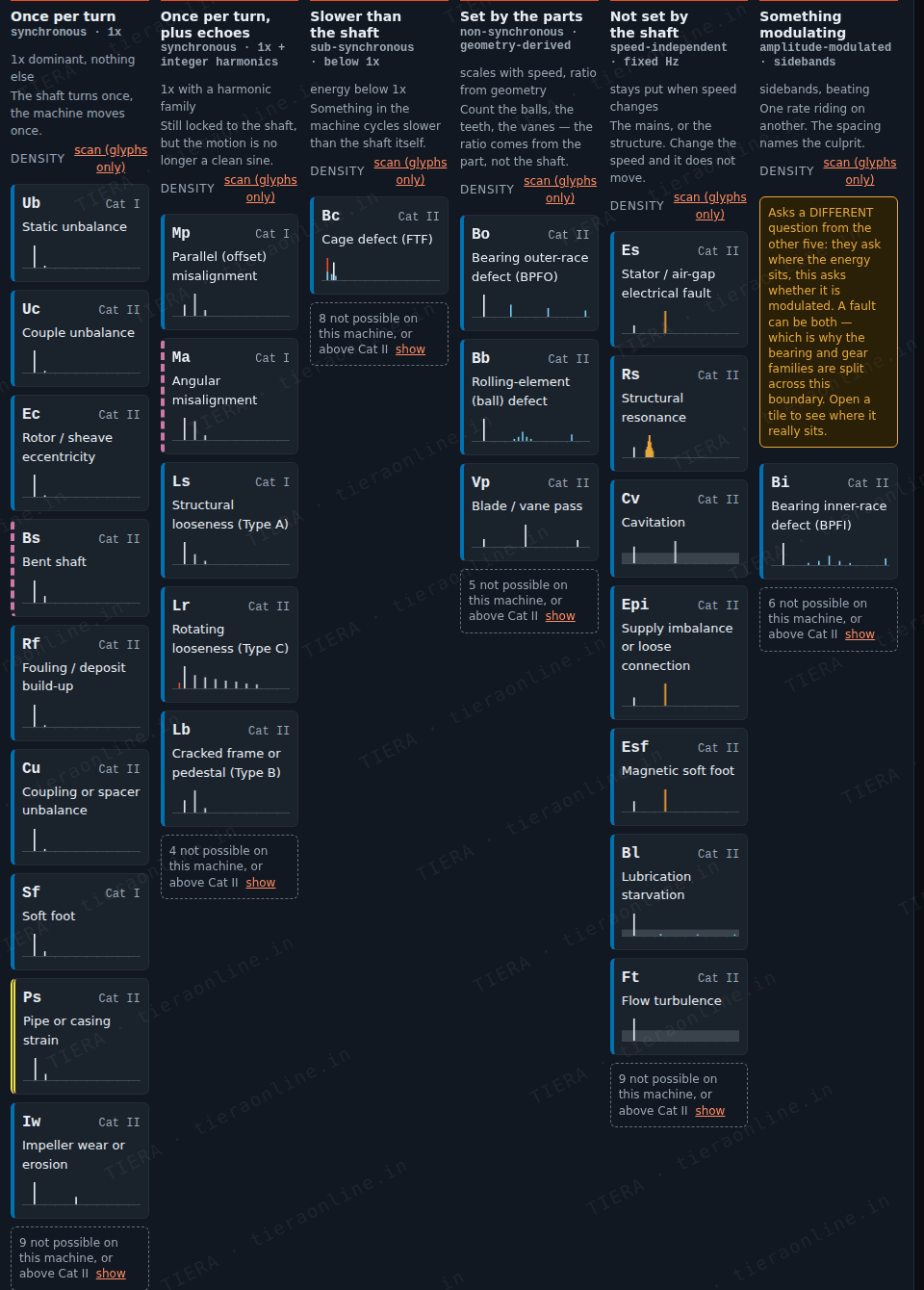

30+ in the base kit — misalignment, unbalance, bearing faults (outer/inner/cage), foundation looseness, resonance, coupling studies, mechanical rub, cocked bearing, bent shaft, gearbox, electrical motor faults, pump cavitation, accelerated bearing wear, and more. Expandable with add-on kits.
What does a TCAT certification cost? +
TCAT Cat I (ISO 18436-2 aligned): Rs 25,000. Cat II: Rs 85,000. Bundle (Cat I + Cat II): Rs 95,000. Certification exams are separate — Cat I Rs 5,900, Cat II Rs 15,000. All available online at learn.tieraonline.in plus optional on-site sessions.
Do you sell internationally? +
Yes. International prices are in USD, EXW Thiruvananthapuram. We have distribution partners — USENS in Korea, and SSPL in India. For other regions, write to ceo@tieraonline.in directly.
What's the payment route for academic and PSU buyers? +
Academic buyers get a 10–15% discount on hardware (talk to us for the exact figure on your kit). GeM rate contracts apply for eligible defence/PSU procurement. GST is 18% IGST or 9%+9% within Kerala — invoiced separately from product price.
