TVIB TB 210 — Two-Plane Field Balancing Module
Guided two-plane balancing with phase correction. No paper charts.
SKU: TVIB-TB210
- ●Single-plane and two-plane field balancing in one workflow
- ●Phase reference from tachometer or laser (optical trigger)
- ●Guided trial-weight run sequence — step-by-step on-screen instructions
- ●Automatic correction weight and angle calculation
- ●Balancing report output for maintenance records
- ●Runs on any PhonoVibe DAQ and on compatible third-party hardware
- ●Module licence — add to existing TVIB installation without reinstalling base
- ●Perpetual licence; free updates for 2 years from purchase
| Balancing planes | Single-plane and two-plane |
| Phase reference | Tachometer or optical laser trigger |
| Output | Correction weight, correction angle, balancing report |
| Host software | TVIB TSAP 201 base module required |
| Compatible DAQ | PhonoVibe series; NI 9234 / 4431; Modal Shop 485B39; Sinus Apollo; DT9837 |
| OS | Windows 10 / 11 (32-bit or 64-bit) |
| Licence type | Perpetual; 2 years free updates |

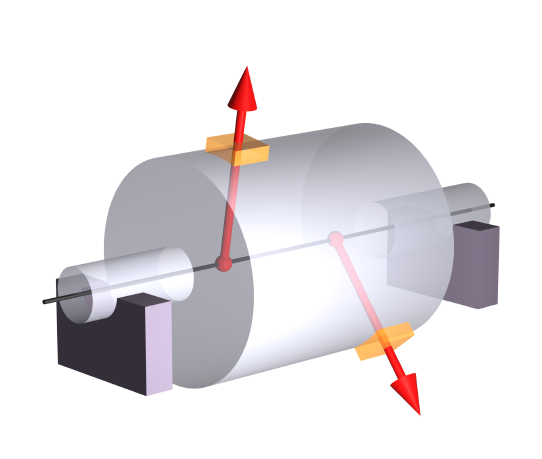

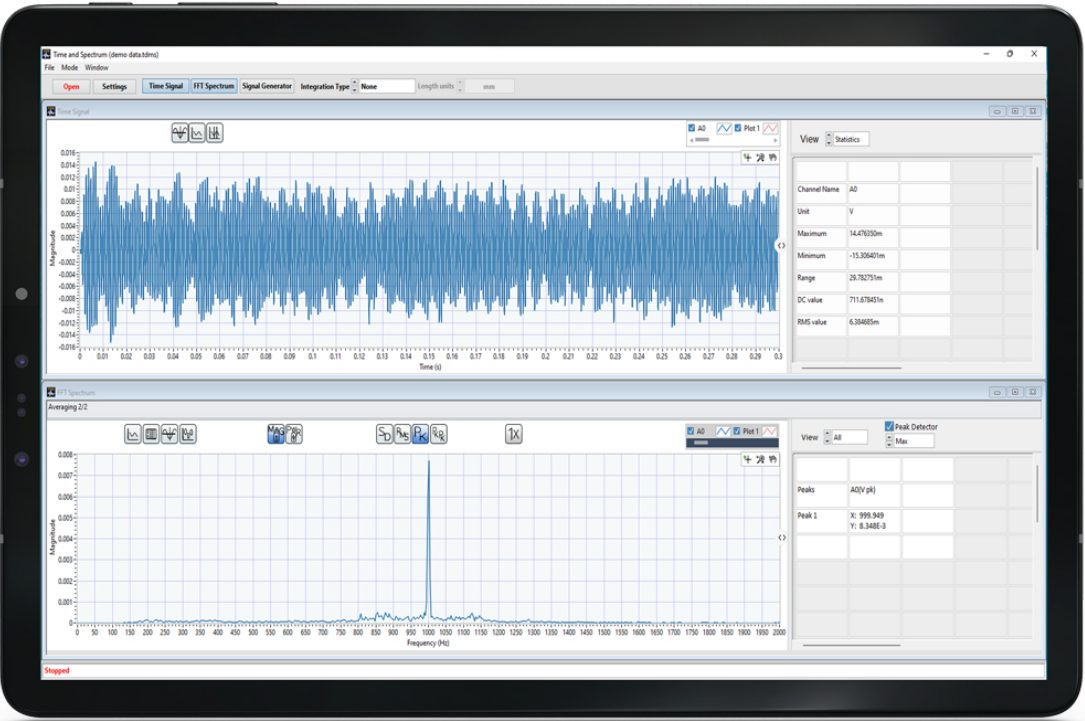

Unbalance is the most common cause of excessive vibration in rotating machinery. TB 210 handles both the simple single-plane case (a thin disc, fan blade, or flywheel) and the more demanding two-plane case (long rotors where balance correction at one plane shifts the vibration at the other).
How the workflow runs
- Mount accelerometer on bearing housing; attach phase reference (tachometer reflector or laser)

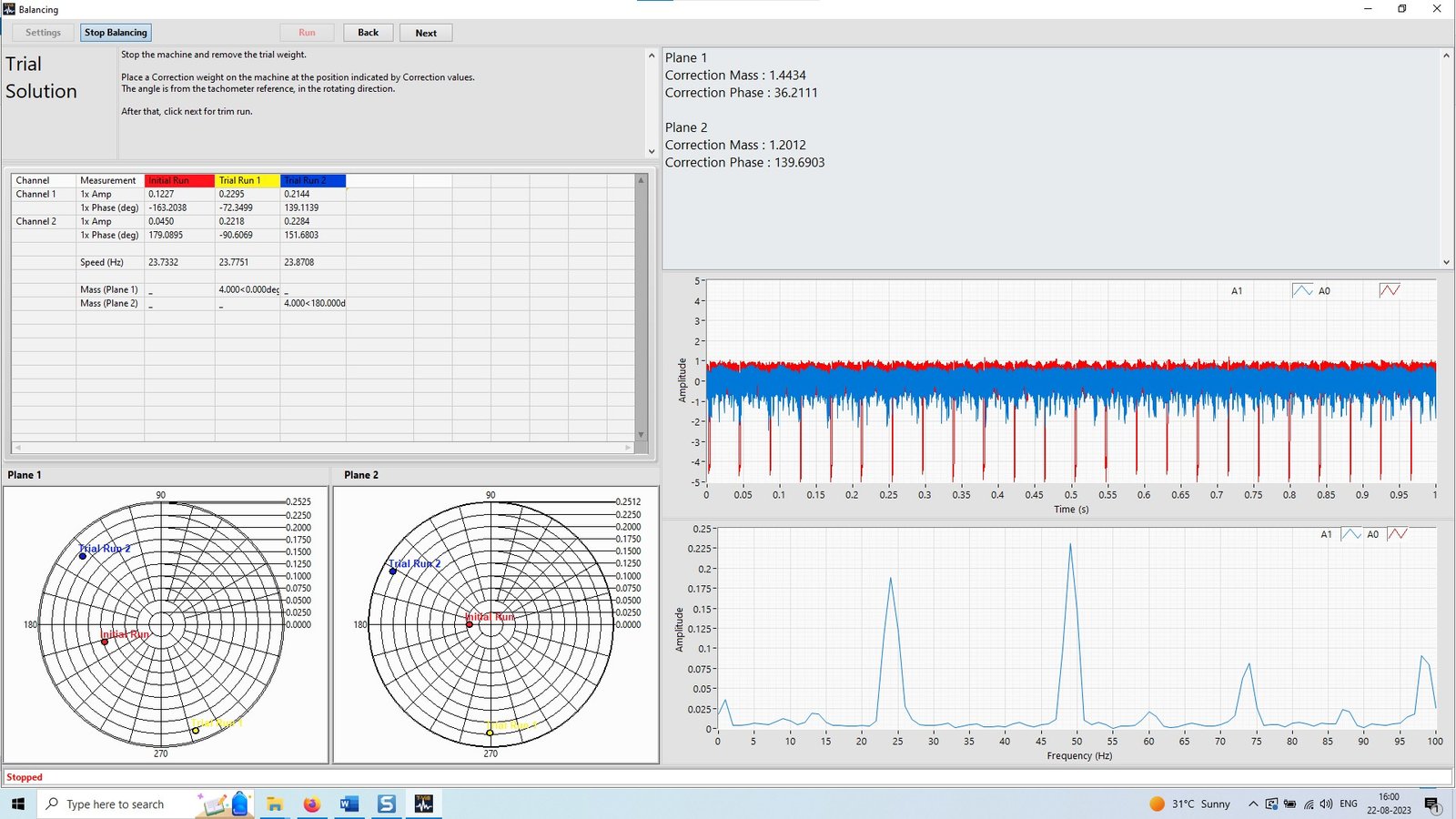

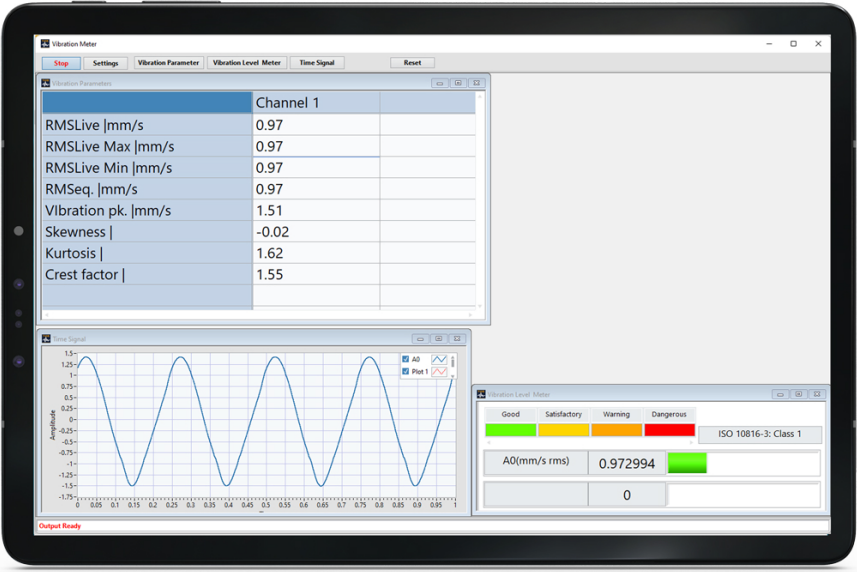

- Run machine at operating speed; TB 210 captures baseline vibration amplitude and phase
- Add a known trial weight at a known angular position on the first plane; run again
- For two-plane: repeat with trial weight on the second plane
- TB 210 calculates the influence coefficients and outputs the final correction weight and angle for each plane
- Install correction weights; verify — the software compares residual unbalance against ISO 1940 grade limits
The process is guided step-by-step on screen, with clear prompts at each measurement stage. No manual polar-plot chart-reading is required.
Machines commonly balanced with TB 210
- Axial and centrifugal fans (HVAC, industrial)
- Centrifugal pumps and compressors
- Motor armatures and rotor assemblies
- Machine-tool spindles
- Turbine rotors (smaller, accessible in-situ)
- Grinding wheels and rotary drums
Licence and compatibility
TB 210 is a module add-on to the TVIB base installation. It runs on any PhonoVibe DAQ and on a range of third-party hardware — NI 9234/4431, Modal Shop 485B39, Sinus Apollo, DT9837. The module licence is perpetual with two years of free software updates included.
A general TVIB brochure is available via the datasheet link above. A TB 210-specific module brochure is available on request from sales@tieraonline.in.
Pairs with:
- TVIB Software — full module map and T-VIB series overview
- PhonoVibe Series — the recommended DAQ for running TB 210 in the field
- TMFSS Macro — generate controlled unbalance and misalignment signatures for analyst training
- Sensors & Accessories — accelerometers and cables for balancing setups
Want to buy or trial it?
Email Varghese (sales) or book a 20-minute demo call.
