TSP Series IEPE Signal Conditioners
Clean constant-current excitation for every IEPE sensor in your setup.
- ●24 VDC excitation, 4 mA constant current — compatible with all ICP®/IEPE sensors
- ●Frequency response: 0.5 Hz – 50,000 Hz
- ●BNC input and BNC output connectors (industry standard)
- ●Unity gain — signal passes through without amplitude scaling
- ●230 VAC / 50 Hz mains powered — stable bench supply
- ●Compact enclosure; 4-channel TSP 04 fits four channels in a single unit
| SKU | Model | Price (INR) | Price (USD) | Notes |
|---|---|---|---|---|
| TSP-02 | TSP 02 — Single Channel IEPE Power Source | ₹27,600 | — | |
| TSP-04 | TSP 04 — Four Channel IEPE Power Source | ₹54,000 | — |
Most IEPE sensors require a stable bias current — typically 2–10 mA — to power the internal charge amplifier and set the DC operating point before AC signal coupling. Without a clean supply, the noise floor of the measurement chain is set by the power source, not the sensor. TSP series conditioners hold excitation current to 4 mA with low ripple, keeping the noise contribution below the sensor’s own self-noise.

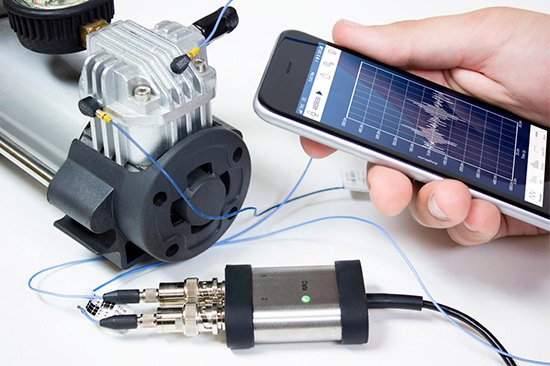

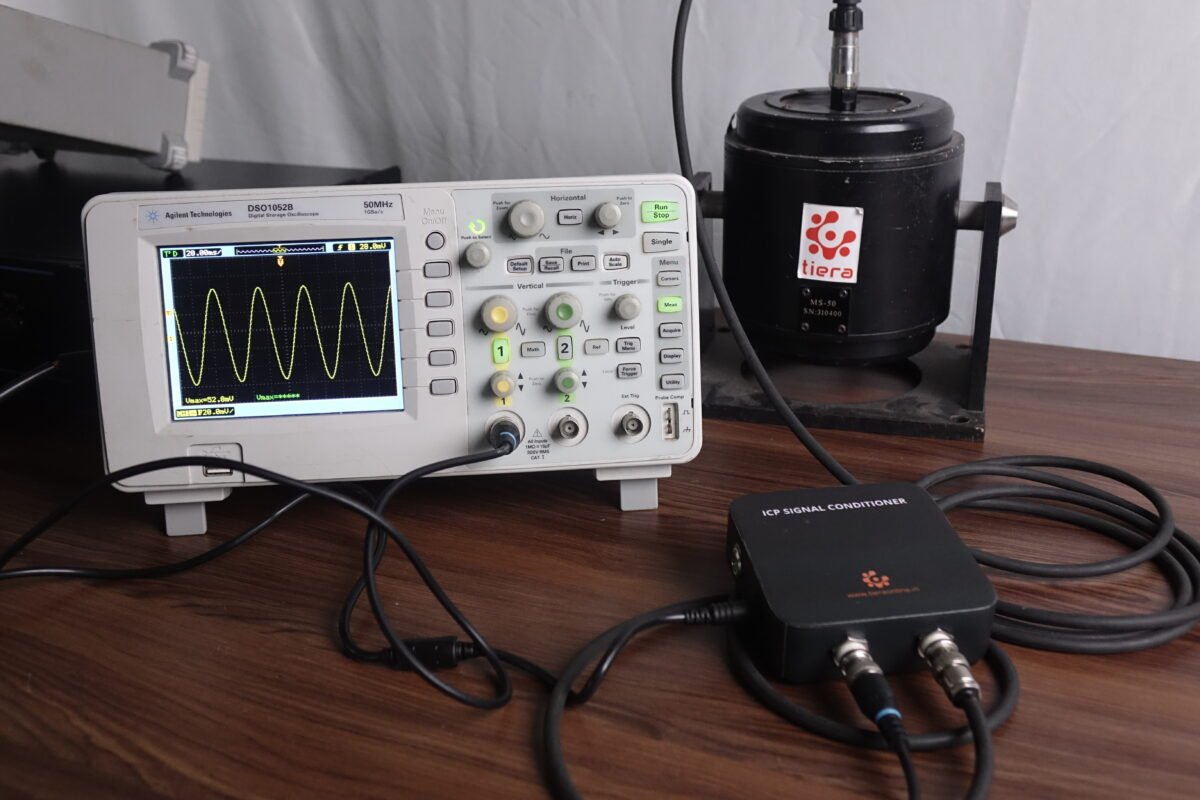

The single-channel TSP 02 suits portable field setups: connect one accelerometer, connect the output to any DAQ or oscilloscope with a BNC input, and begin acquiring. The four-channel TSP 04 is the practical choice for multi-point resonance surveys, mode shape measurements, or any test requiring simultaneous signals from several sensors. Both units are compatible with PhonoVibe DAQ systems, third-party data recorders, and standalone spectrum analysers.
