TVIB — Sound & Vibration Analysis Software

TVIB is modular. You buy the base module (TSAP201 — free with every PhonoVibe DAQ), and you add only the modules your work requires. Order tracking when you’re doing rotating-equipment diagnostics. FRF and modal modules when you’re characterising structure. NDT RAM when you need automated pass/fail on a production line. The balancing module when you’re correcting residual unbalance in the field.

Module map

Code	Module	What it does
TSAP201	Time & FFT Spectrum Analyzer	Base module. Time wave + narrowband FFT, filters, cursors, post-processing. Free with PhonoVibe.
TVM 202 / 203	Basic Vibration Meter	RMS, peak, peak-to-peak, crest factor with unit scaling and dB views.
TSLM 204	Sound Level Meter	A / C / Z-weighted SPL, Leq, Lmax — for environmental and product-acoustic work.
TIST 205	Signal Generator / Impact Shaker	Drive a shaker for impact, sine, chirp, random tests. Built-in calibrator. Modal pre-processing.
TFRT	FRF Test	Frequency-response measurement — drive point, transfer path, modal pre-processing.
TOA 207 / 208	Octave Analyzer	1/1, 1/3, 1/6, 1/12 octave bands. Useful for acoustic NDT and machinery octave alarms.
TB 210	Balancing	Single-plane and two-plane field balancing with phase correction.
NDT RAM	End-of-Line Spectral Alarm	Automated spectral alarm thresholds for production pass/fail testing. Automotive shaft and motor QA.
MODALVIEW	ODS & EMA	Operating Deflection Shapes and Experimental Modal Analysis (add-on package).

Balancing Module (TB 210)

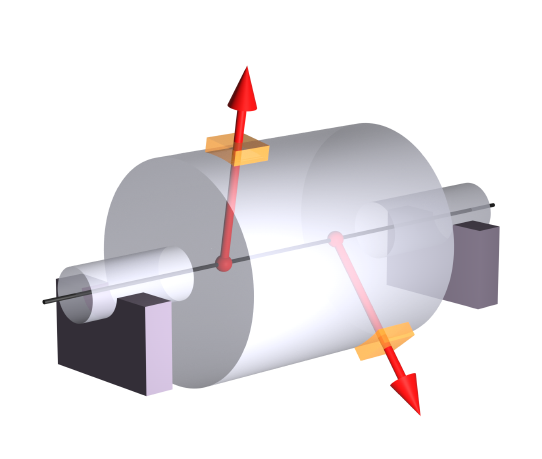

TB 210 covers single-plane and two-plane field balancing. It accepts phase reference from a tachometer or laser, guides you through trial-weight runs, calculates correction weights and angles, and outputs a balancing report. Standard workflow used by maintenance teams on fans, pumps, compressors, and motor shafts.

NDT RAM — End-of-Line testing

NDT RAM (Non-Destructive Testing — Resonance Analysis Module) sets spectral alarm bands on a per-component basis. Each unit under test runs through the measurement; TVIB compares against the alarm envelope and returns pass or fail. Used in automotive driveshaft testing, electric motor QA, and pump impeller inspection.

TIST 205 — Modal analysis and shaker drive

TIST 205 drives a shaker or works with an impact hammer. It generates sine, chirp, burst, and random excitation signals and simultaneously captures the response channels to compute FRFs. Output feeds directly into modal software for mode-shape extraction. Used with the PhonoVibe Eco X or with third-party shaker amplifiers.

Brochure and manual

• T-VIB Brochure PDF
• Software manual (v1.6, 16 MB) available on request — email support@tieraonline.in

TSAP201 in detail

• 2-channel operation with sample rate, sample count, and bit-depth selection
• Time wave and narrowband FFT up to 102,400 points
• Independent channel calibration and scaling (separate views per channel)
• Scaling presets: accelerometers, microphones, force sensors, voltage
• FIR and IIR filters
• Channel triggers (pre / post, hysteresis)
• Averaging: exponential, linear, peak hold, with selectable windowing
• Harmonic, band, and sideband cursors in both time and frequency domain
• Acceleration → velocity → displacement integration
• Linear, log, and dB scaling with axis annotation
• Signal recording and post-processing

Third-party DAQ compatibility

TVIB is not locked to TIERA hardware. Tested and supported with:

• National Instruments 9234, 4431, 9231
• Modal Shop 485B39
• Sinus Apollo Light
• Data Translation DT9837
• All PhonoVibe models in the series

Contact sales@tieraonline.in for compatibility on other DAQ models.

Licensing

• Web-based key — software-bound, requires online activation. Easiest path.
• Dongle (USB) — PC-independent, physical key. Useful for offline labs or shared workstations.

AMC customers pay only for new modules added during the agreement. Non-AMC customers pay for all modules plus dongle cost — treated as a fresh purchase. Email licensing@tieraonline.in for activation, upgrades, or transfers.

Try before you buy

A 14-day fully-unlocked evaluation licence is available. The trial runs on sound-card-based devices and is not calibrated — it lets you explore the UI and module workflow, not run audited measurements.

Start the 14-day trial →

Recommended PC specs

• Intel Core i7, 4 cores (3rd generation or newer)
• 8 GB RAM, SSD
• DirectX 11 graphics
• 1280×720 (HD-ready) display
• Windows 10 64-bit or Windows 11
