PhonoVibe HD — 16-Channel Sound & Vibration DAQ
Sixteen simultaneous 24-bit channels. 128 kHz. Modal-lab bandwidth in a USB box.
SKU: PhonoVibe-HD
- ●16 fully simultaneous 24-bit input channels
- ●128 kHz per-channel sampling rate — 0.5 Hz to 60 kHz bandwidth
- ●IEPE / ICP / CCLD sensor power: 24 V, 4 mA constant current on every channel
- ●TEDS (IEEE 1451.4) sensor recognition
- ●±5 V input range
- ●Static (DC) measurements supported
- ●USB plug-and-play — no external power supply required
- ●Factory calibration certificate included (1-year validity)
- ●2-year standard warranty, extendable to 3 years

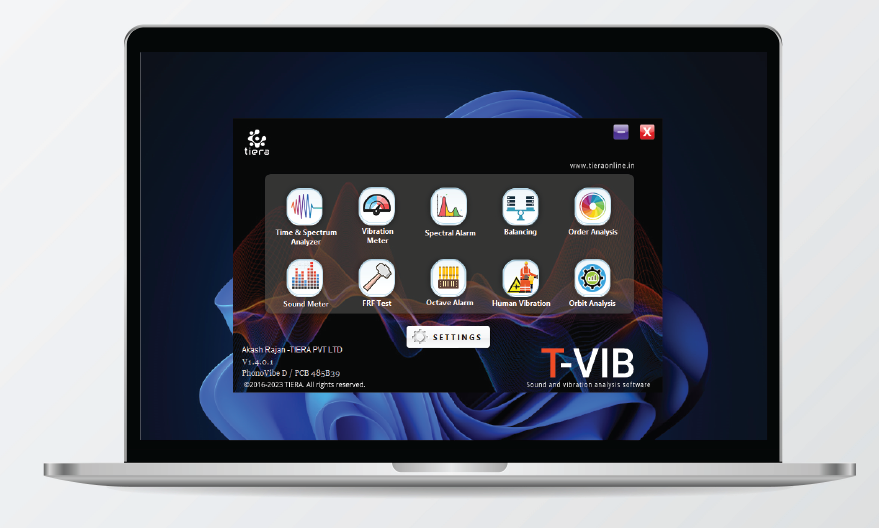

- ●Bundled with TVIB TSAP 201 analysis software
| Channels | 16 (simultaneous) |
| ADC resolution | 24-bit |
| Sampling rate | 128 kHz per channel |
| Bandwidth | 0.5 Hz – 60 kHz |
| Input voltage | ±5 V |
| Sensor power | 24 V, 4 mA constant current (IEPE/ICP/CCLD) |
| Connectivity | USB, plug-and-play |
| OS | Windows 10 / 11 (32-bit or 64-bit) |
| TEDS | IEEE 1451.4 supported |
| Calibration | Factory certificate, 1-year validity |
| Warranty | 2 years standard, extendable to 3 |
| Bundled software | TVIB TSAP 201 |

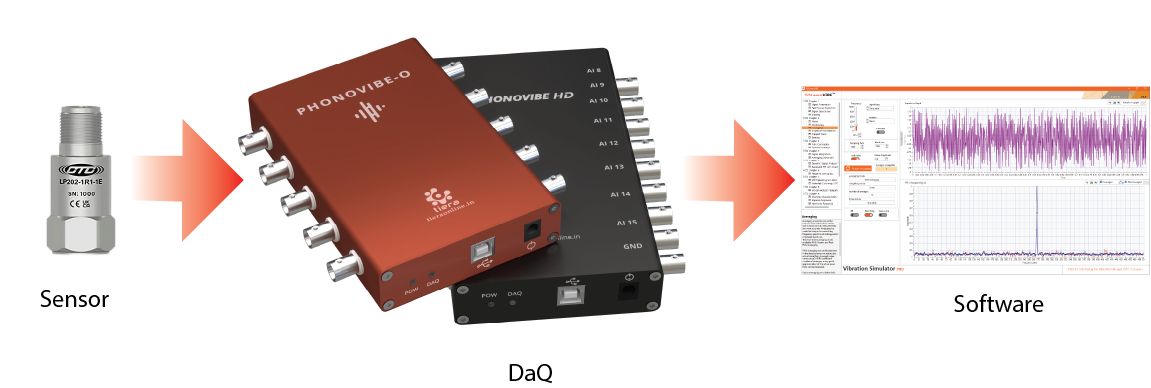

The PhonoVibe HD packs 16 simultaneous input channels into a compact USB device — no rack, no external power brick. Every channel runs its own 24-bit ADC at 128 kHz, delivering 0.5 Hz to 60 kHz measurement bandwidth with ±5 V input range and 24 V / 4 mA IEPE constant-current sensor excitation.

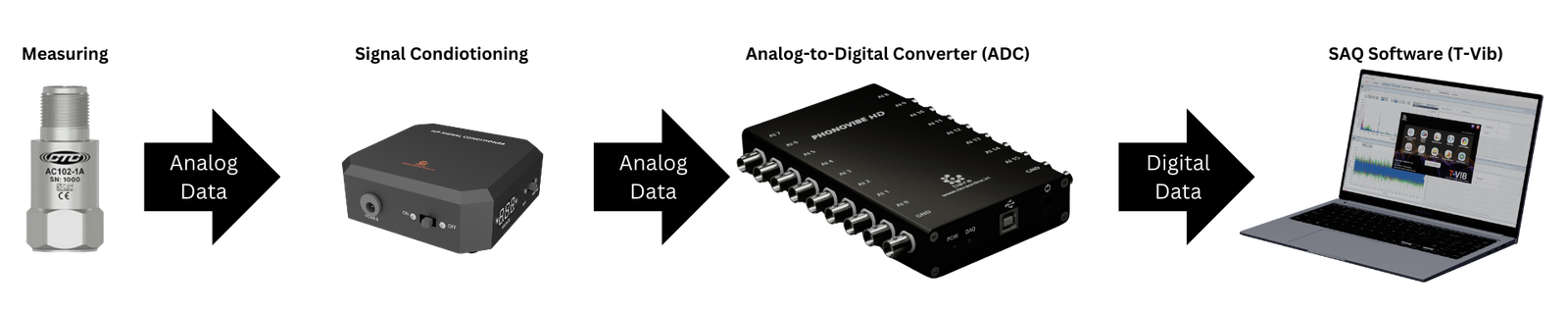

At the measurement chain level, simultaneous sampling matters: all 16 channels are phase-coherent, so cross-channel phase and coherence data are valid without correction. That makes the HD the right choice for full modal testing (impact or shaker), multi-plane rotor dynamics studies, and line-monitoring banks where capturing a machine’s entire sensor array in a single acquisition is critical.
TEDS sensor recognition is built in. Plug a TEDS-equipped transducer and the DAQ reads the calibration data automatically — no manual gain-entry errors on multi-sensor setups.
Typical applications
- Full modal analysis — 16-point response measurement in a single pass; no stitching required
- Rotor dynamics — multi-plane vibration capture on large rotating machines
- NVH survey — simultaneous array measurement across a vehicle or structure
- AI training data — high-channel-count simultaneous capture for fault-classification model development
- Multi-bearing monitoring — capture the entire drive train without time-multiplexed error
What ships in the box
The PhonoVibe HD ships with the DAQ unit, connectors and cables, and a TVIB TSAP 201 perpetual software licence. Factory calibration certificate (1-year validity) is included. A second-year certificate is available on AMC.
| Spec | Value |
|---|---|
| Channels | 16 simultaneous |
| ADC | 24-bit |
| Sample rate | 128 kHz / ch |
| Bandwidth | 0.5 Hz – 60 kHz |
| Sensor power | 24 V · 4 mA IEPE/ICP/CCLD |
| Input | ±5 V |
| Interface | USB (plug-and-play) |
| Warranty | 2 years (3 years extendable) |
